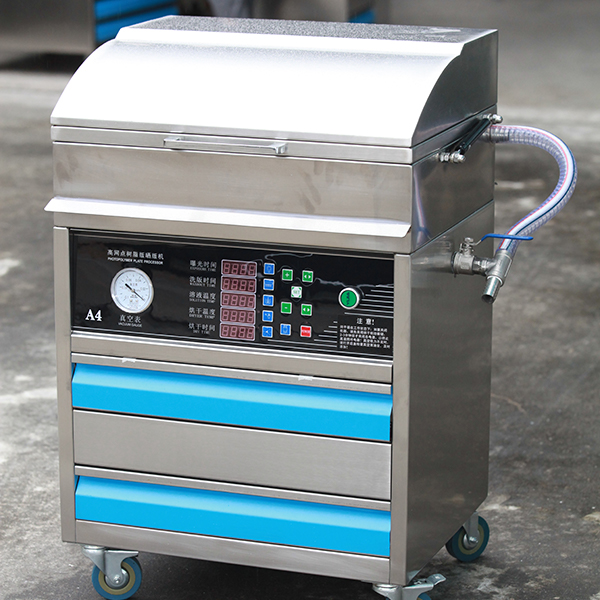

XYD high dot resin plate making machine

Published on:2023-11-18 14:22:27Views:745【Small in large】

The performance characteristics of the XYD type high dot resin plate making machine include exposure, plate washing, and drying functions.

Performance characteristics:
combines several functions of exposure, plate washing and drying in one unit.
Digital display, computer-intelligent control.
Using imported Philips UVA lamps with professional electronic ballasts to create a stable process for displaying perfect artwork.
high strength suction plate offers powerful vacuum status.
Automatic plate sticking for convenient process.
Circulating hot air maintains a constant temperature to match plate-making demand.
Intelligent heating Water tank to maintain a constant temperature with an overheat protection device.
High definition art work up to 175 line screen job.

Machine’s model and parameters:

型号 Model	工作面积（MM） Plate’s size（MM）	外形尺寸（MM） Overall size（MM）	电源（V） Power source（V）	功率（KW） Power（KW）	重量（KG） Weighth（KG）
XYD250	400×250	530420830	220V single phase 50HZ	1.2	65
XYD300	420×300	560460870	220V single phase 50HZ	1.5	75
XYD400	500×400	700560880	220V single phase 50HZ	4.3	110
XYD450	600×450	8606201000	220V single phase 50HZ	2.5	150
XYD450L	600*450	860×620×1180	220V single phase 50HZ	3.0	180
